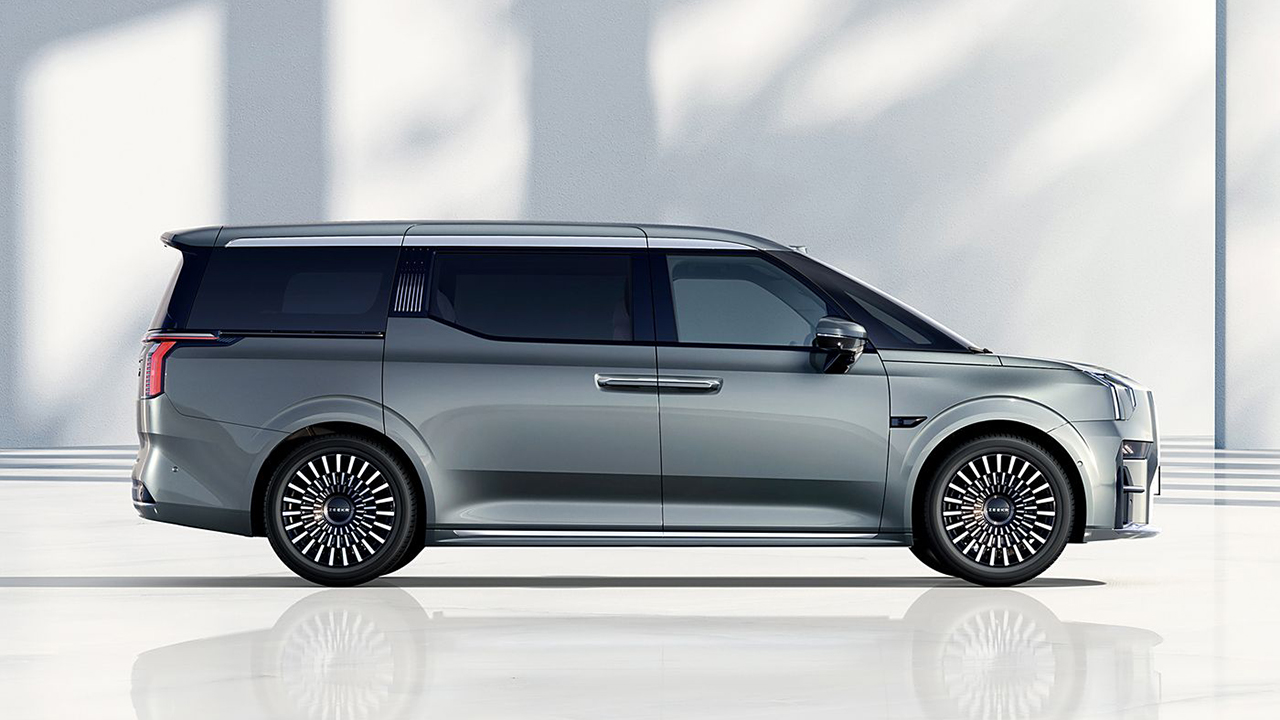

| Models | Extreme Krypton 009 2022 WE Edition | Extreme Krypton 009 2022 ME Edition |
| Guide price | 499000 | 588000 |
| Basic parameters | ||
| Manufacturer | ZEEKR | ZEEKR |
| Level | Mid-size MPV | Mid-size MPV |
| Energy types | Pure Electric | Pure Electric |
| Time to market | 2022.11 | 2022.11 |
| Pure electric range | 702 | 822 |
| Fast charging time (hour) | 0.47 | \ |
| Slow charging time (hour) | \ | \ |
| Fast charging percentage | 80 | \ |
| Maximum power (KW) | 400 | 400 |
| Maximum torque (N.m) | 686 | 686 |
| Motor (Ps) | 544 | 544 |
| Length * Width * Height (mm) | 5209*2024*1848 | 5209*2024*1848 |
| Body structure | 5-door 6-seat mpv | 5-door 6-seat mpv |
| Maximum speed (km/h) | 190 | 190 |
| Official 0-100km/h acceleration (s) | 4.5 | 4.5 |
| Measured 0-100km/h acceleration (s) | \ | \ |
| Body | ||
| Length (mm) | 5209 | 5209 |
| Width (mm) | 2024 | 2024 |
| Height (mm) | 1848 | 1848 |
| Wheelbase (mm) | 3205 | 3205 |
| Front wheel base (mm) | 1701 | 1701 |
| Rear wheel base (mm) | 1713 | 1713 |
| Minimum ground clearance (mm) | 12 | 12 |
| Body structure | MPV | MPV |
| Door opening method | Flush door + side sliding door | Flush door + side sliding door |
| Number of doors (PCS) | 5 | 5 |
| Seats (number) | 6 | 6 |
| Luggage volume (L) | \ | \ |
| Preparation mass (kg) | 2830 | 2830 |
| Maximum fully loaded mass（kg） | 3320 | 3320 |
| Motor | ||
| The motor type | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 400 | 400 |
| Total torque of motor (N-M) | 686 | 686 |
| Maximum power of front motor (kW) | 200 | 200 |
| Drive motor number | Dual motor | Dual motor |
| Machine layout | Front + Rear | Front + Rear |
| The battery type | Ternary lithium battery | Ternary lithium battery |
| Battery cooling method | Liquid cooling | Liquid cooling |
| NEDC pure electric range (km) | \ | \ |
| WLTP pure electric range (km) | \ | \ |
| CLTC pure electric range (km) | 702 | 822 |
| EPA Pure electric range (km) | \ | \ |
| Battery energy (kWh) | 116 | 140 |
| 100km power consumption (kWh/100km) | 18.3 | \ |
| Quick charging time (hour) | 0.47 | \ |
| Slow charging time (hour) | \ | \ |
| Fast charging capacity (%) | 80 | \ |
| Transmission | ||
| Block a number | 1 | 1 |
| Transmission type | Fixed Ratio Transmission | Fixed Ratio Transmission |
| Referred to as" | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Chassis steering | ||
| Drive way | Dual motor 4WD | Dual motor 4WD |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension |
| Front suspension type | Multi-link independent suspension | Multi-link independent suspension |
| Power type | Electric assist | Electric assist |
| Car body structure | load bearing | load bearing |
| Wheel brake | ||
| Front brake type | ventilated disc | ventilated disc |
| Rear brake type | ventilated disc | ventilated disc |
| Parking brake type | Electronic Parking | Electronic Parking |
| Front tyre specification | 255/50 R19 | 255/50 R19 |
| Rear tyre specification | 255/50 R19 | 255/50 R19 |
| Spare tire specifications | \ | \ |
| Active/passive safety equipment | ||
| Master/passenger-side airbags | Master●/deputy● | Master●/deputy● |
| Front/rear side airbags | ●Before/after | ●Before/after |
| Front/rear head air bag (air curtain) | ●Before/after | ●Before/after |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display |
| Run-flat tire | ○ | \ |
| Safety belt not fastened reminder | Full car | Full car |
| ISOFIX child seat interface | ● | ● |
| ABS antilock ABS | ● | ● |
| Braking force distribution (EBD/CBC, etc.) | ● | ● |
| Brake assist (EBA/BAS/BA etc.) | ● | ● |
| Traction control (ASR/TCS/TRC etc.) | ● | ● |
| Body stability control (ESC/ESP/DSC etc.) | ● | ● |
| active safety | ||
| Lane departure warning system | ● | ● |
| Active brake/active safety system | ● | ● |
| Fatigue driving warning | ● | ● |
| DOW Open Door Alert | ● | ● |
| Rear Collision Warning | ● | ● |
| Rear Collision Warning | ● | ● |
| Low Speed Warning | ● | ● |
| Built-in car recorder | ● | ● |
| Road rescue call | ● | ● |
| Auxiliary/control configuration | ||
| Driving mode switch | Movement economic Standard/comfort Customization/Personalization on snowfield |
Movement economic Standard/comfort Customization/Personalization on snowfield |
| Single pedal mode | ● | ● |
| Energy Recovery System | ● | ● |
| Autohold | ● | ● |
| Hill auxiliary | ● | ● |
| Steep descent | ● | ● |
| Variable suspension functionVariable suspension function | ●Suspension soft and hard adjustment ●Suspension height adjustment |
●Suspension soft and hard adjustment ●Suspension height adjustment |
| air suspension | ● | ● |
| Electromagnetic induction suspension | ● | ● |
| Variable steering ratio | \ | \ |
| Driving hardware | ||
| Front/Rear Parking Radar | Front●/Rear● | Front●/Rear● |
| Driving assistance image | 360° panoramic image | 360° panoramic image |
| Driving chassis/540°image | ● | ● |
| Number of ltrasonic rada | 12 | 12 |
| Number of millimeter wave radars | 1 | 1 |
| driving function | ||
| cruise control | Full-speed adaptive cruise control | Full-speed adaptive cruise control |
| Assisted driving level | L2 | L2 |
| Reverse vehicle side warning system | ● | ● |
| Satellite navigation system | ● | ● |
| Navigation road condition information display | ● | ● |
| High precision map | ● | ● |
| merging aid | ● | ● |
| LKA | ● | ● |
| Lane centering | ● | ● |
| Road traffic signage recognition | ● | ● |
| automatic parking | ● | ● |
| remote control | ● | ● |
| Automatic lane change assistance | ● | ● |
| Ramp automatic exit (entry) | ○ | ○ |
| Signal light recognition | ○ | ○ |
| Steering wheel off hand detection | ● | ● |
| Exterior/Anti-theft | ||
| Rim Material | aluminum | aluminum |
| Electric closing door | front row | front row |
| Side sliding door form | Bilateral electric | Bilateral electric |
| Electric trunk | ● | ● |
| Electric trunk position memory | ● | ● |
| Central locking in the car | ● | ● |
| Key Type | The bluetooth key NFC/RFID key NFC/RFID UWB digital key |
The bluetooth key NFC/RFID key NFC/RFID UWB digital key |
| Keyless Start System | ● | ● |
| Keyless entry function | homologation | homologation |
| Active Closed Grille | ● | ● |
| Remote start function | ● | ● |
| Battery preheating | ● | ● |
| external discharge | ● | ● |
| Exterior lights | ||
| Low beam light source | LED | LED |
| High beam light source | LED | LED |
| Lighting Features | matrix | matrix |
| LED daytime running lights | ● | ● |
| Adaptive high and low beam | ● | ● |
| Automatic headlamps | ● | ● |
| Turn signal headlights | ● | ● |
| Headlight rain and fog mode | ● | ● |
| Height adjustable headlamps | ● | ● |
| Headlight washers | ● | ● |
| Delayed headlight off | ● | ● |
| Sunroof/Glass | ||
| Sunroof type | Segmented non opening skylight | Segmented non opening skylight |
| Light sensing canopy | \ | \ |
| Front/rear power windows | Front●/Rear● | Front●/Rear● |
| One-touch window up/down function | homologation | homologation |
| Anti-window pinch function | ● | ● |
| Multi-layer soundproof glass | front row back row |
front row back row |
| Rear side privacy glass | ● | ● |
| Car Cosmetic Mirror | Master driver + light Co-pilot + light |
Master driver + light Co-pilot + light |
| rear wiper | ● | ● |
| Sensor wiper function | Rainfall sensing type | Rainfall sensing type |
| rearview mirror | ||
| Exterior Mirror Function | Electric adjustment Electric Folding Mirror memory Mirror heating Automatic reverse flip Lock Auto Fold Automatic anti glare |
Electric adjustment Electric Folding Mirror memory Mirror heating Automatic reverse flip Lock Auto Fold Automatic anti glare |
| Screen/System | ||

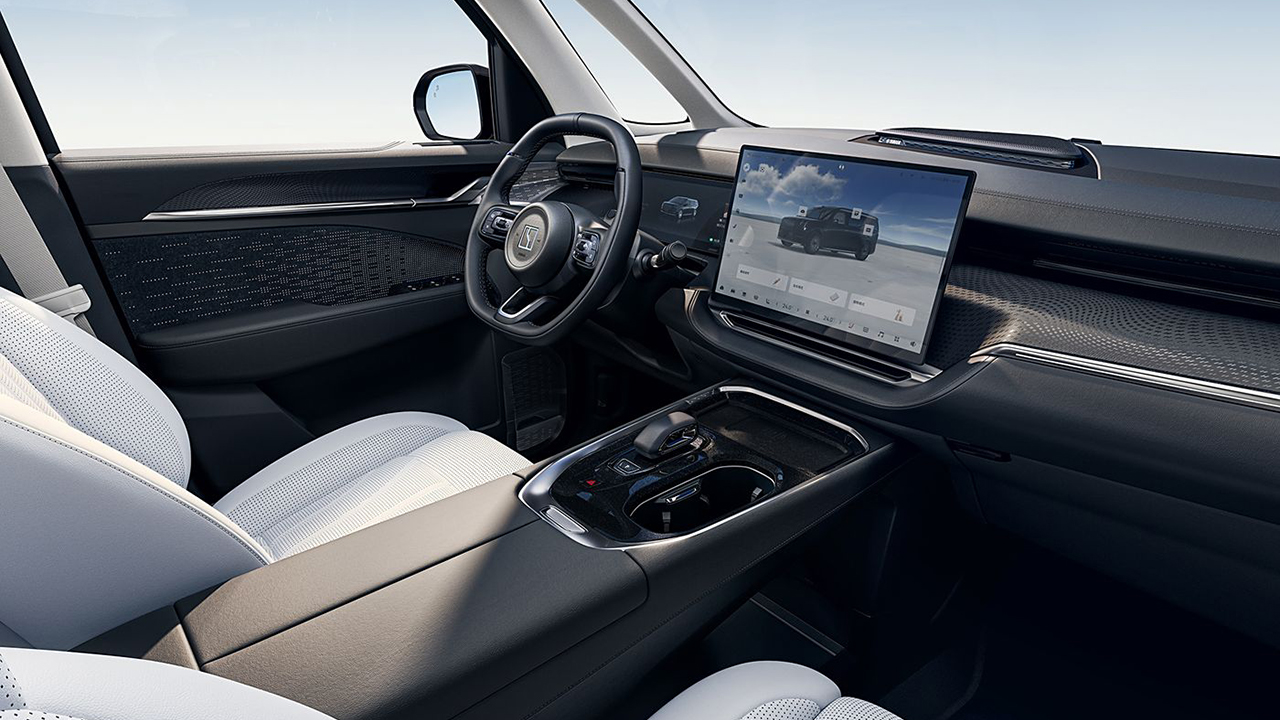

| Center color screen | Touch LCD | Touch LCD |
| Center screen size | 15.4 | 15.4 |
| Bluetooth/Car Phone | ● | ● |
| Cell phone connectivity/mapping | Factory Interconnection/Mapping | Factory Interconnection/Mapping |
| Voice Recognition Control System | multimedia system navigator telephones refrigeration car window |
multimedia system navigator telephones refrigeration car window |
| facial recognition | ● | ● |
| In-vehicle Intelligent System | ZEEKR OS | ZEEKR OS |
| Rear LCD screen | ● | ● |
| Rear LCD screen size | 15.6 | 15.6 |
| Rear control multimedia | ● | ● |
| Intelligent Configuration | ||
| Telematics | ● | ● |
| 4G/5G | 5G | 5G |
| OTA upgrade | ● | ● |
| Wi Fi hotspot | ● | ● |
| Mobile APP Remote Function | Door Controls Start the vehicle. Charge Management Air conditioning control Vehicle Condition Check vehicle location Owner Services |
Door Controls Start the vehicle. Charge Management Air conditioning control Vehicle Condition Check vehicle location Owner Services |
| Steering Wheel/Inner Mirror | ||
| Steering wheel materia | dermis | dermis |
| Steering wheel position adjustment | Manual up and down+fore and aft adjustment | Manual up and down+fore and aft adjustment |
| Gear Shift Form | Electronic Gear Shift | Electronic Gear Shift |
| multifunction steering wheel | ● | ● |
| Heated steering wheel | ● | ● |
| Steering wheel memory | \ | \ |
| Car computer display screen | colorful | colorful |
| Full LCD instrument cluster | ● | ● |
| Liquid crystal instrument size | 10.25 | 10.25 |
| Inside Rearview Mirror Function | Automatic anti-dazzle | Automatic anti-dazzle |
| In-vehicle charging | ||
| Multimedia/Charging Interface | USB Type-c HDMI |
USB Type-c HDMI |
| Number of interfaces | 3 front/4 rear | 3 front/4 rear |
| 220V/230V power supply | \ | \ |
| Mobile wireless charging function | front row | front row |
| Luggage compartment 12V power interface | ● | ● |
| Seat Configuration | ||
| Seat Material | dermis | dermis |
| Sport seats | \ | \ |
| Main seat adjustment | Adjustment Back-up adjustment High and low adjustment (4-way) Lumbar support (4-way) |
Adjustment Back-up adjustment High and low adjustment (4-way) Lumbar support (4-way) |
| Adjustment of passenger seat | Adjustment Back -up adjustment High and low adjustment (4-way) |
Adjustment Back -up adjustment High and low adjustment (4-way) |
| Power adjustable main/passenger seat | Master●/passenger-side ● | Master●/passenger-side ● |
| Front Seat Function | ●heater ●ventilate ●massage |
●heater ●ventilate ●massage |
| Power seat memory function | Driving position back row |
Driving position back row |
| Passenger seat rear adjustable buttons | ||

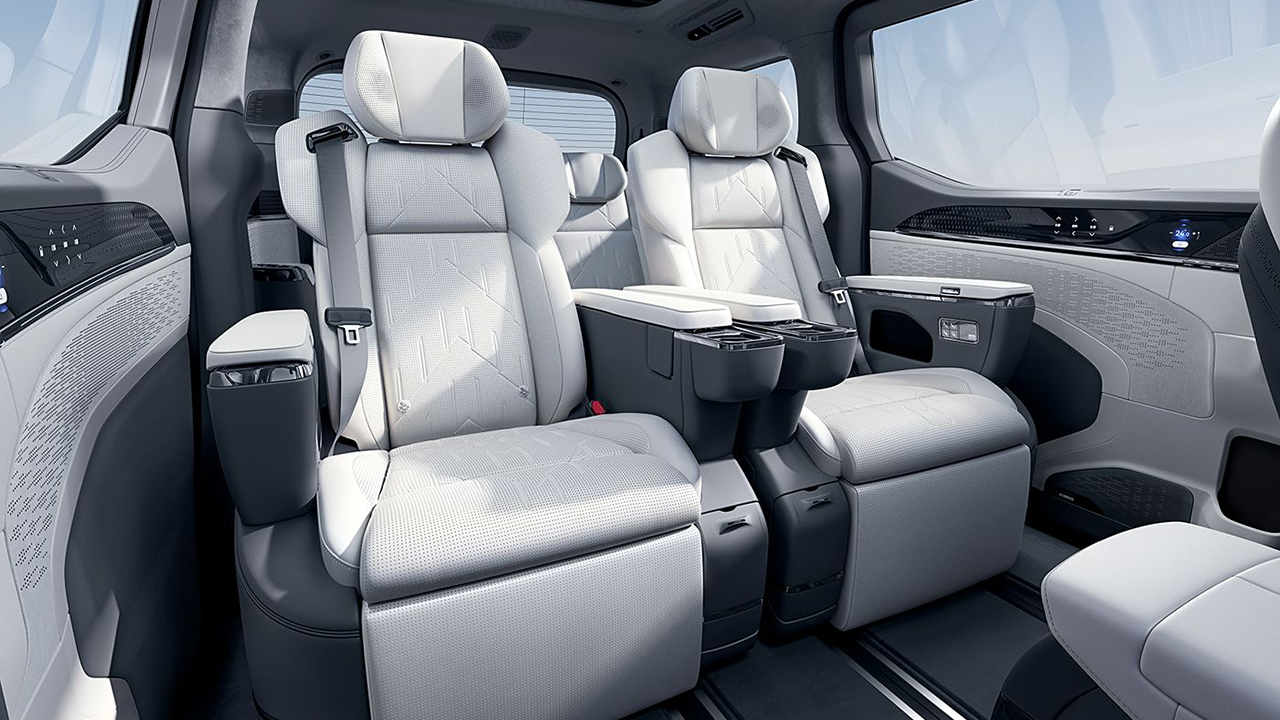

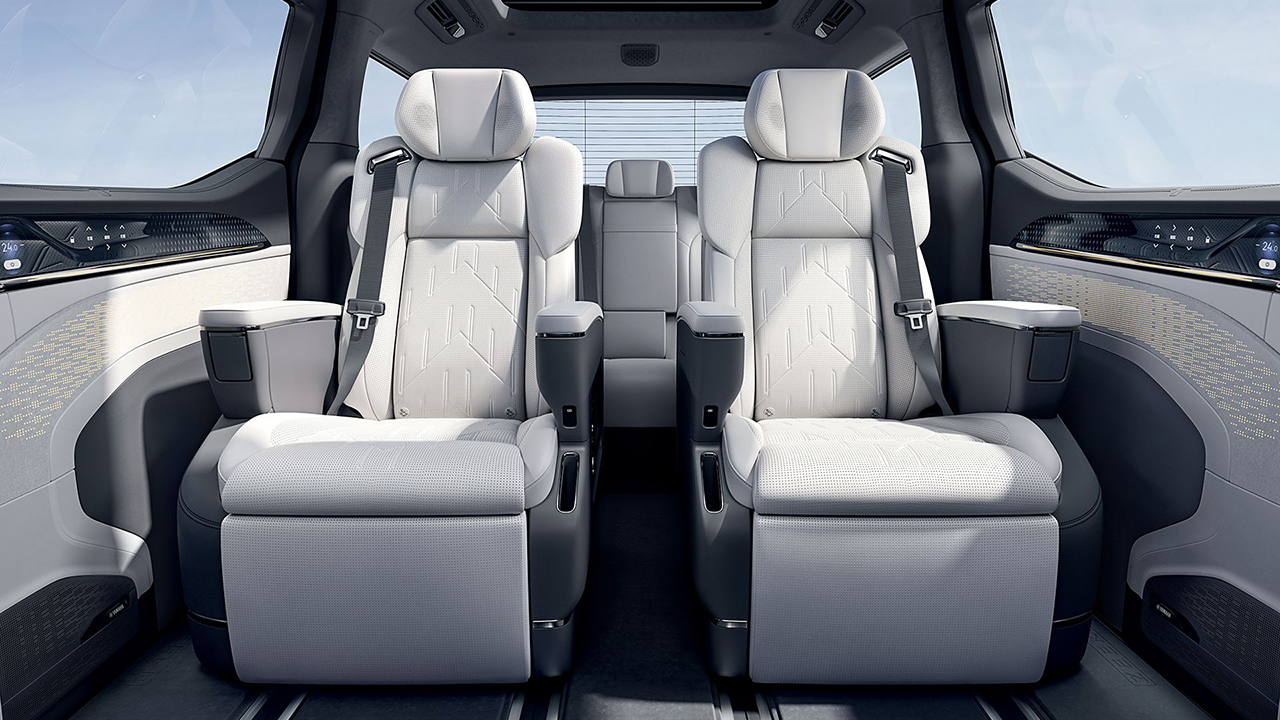

| Second row seat adjustment | Adjustment Back -up adjustment Leg support adjustment |
Adjustment Back -up adjustment Leg support adjustment |
| Power adjustable second row seats | ● | ● |
| Second row seat function | ●heater ●ventilate ●massage |
●heater ●ventilate ●massage |
| Rear small table board | ● | ● |
| Second row independent seats | ● | ● |
| Third row seat adjustment | Backrest adjustment | Backrest adjustment |

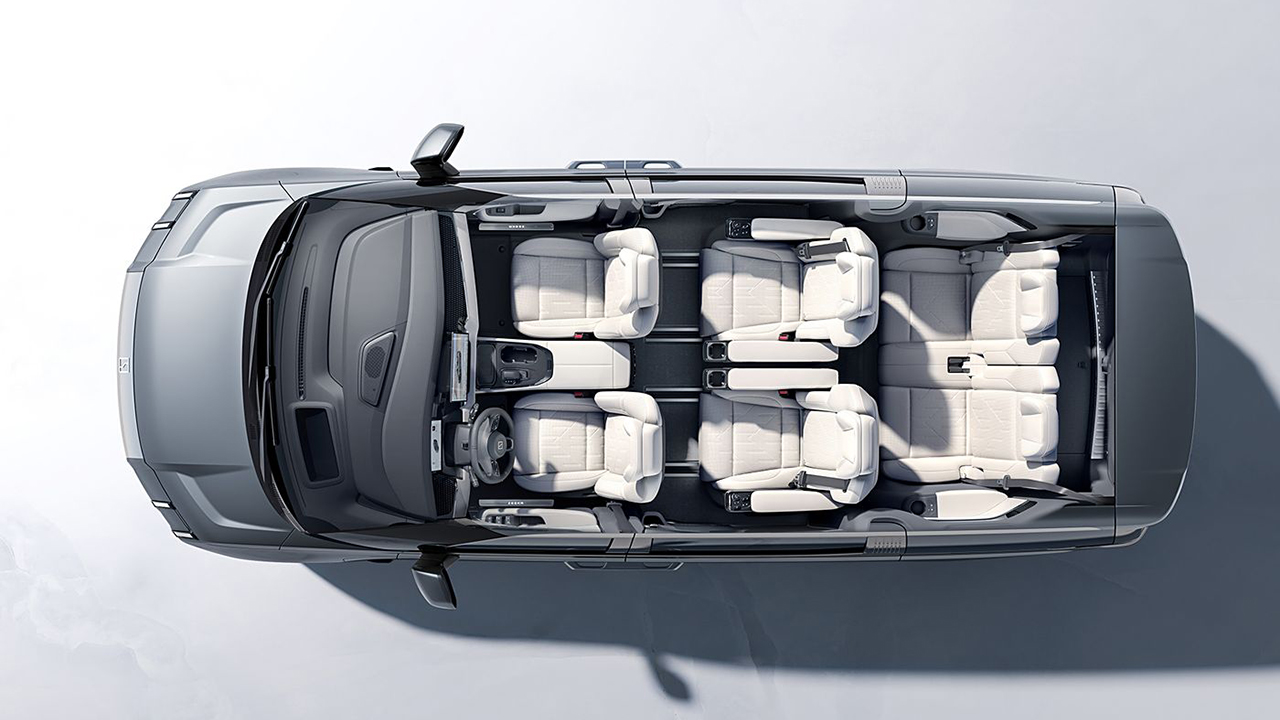

| Seat layout | 2-2-2 | 2-2-2 |
| Rear Seat Dismounting Form | proportional downward movement | proportional downward movement |
| Front/rear center armrest | Front●/Rear● | Front●/Rear● |
| Rear Cup Holder | ● | ● |
| Audio/In-Car Lighting | ||
| Loudspeaker Brands | ● YAMAHA | ● YAMAHA |
| Number of speakers | 20 | 20 |
| Interior ambient lighting | polychrome | polychrome |
| Air conditioners/refrigerators | ||
| Air conditioning temperature control method | automatic air conditioning | automatic air conditioning |
| heat pump air conditioner | ● | ● |
| Individual rear air- conditioning | ● | ● |
| Rear seat air vents | ● | ● |
| Temperature zone control | ● | ● |
| Car Air Purifier | ● | ● |
| In-vehicle PM2.2 filters | ● | ● |
| Negative Ion Generator | \ | \ |
| In-car scenting devices | ● | ● |
| Car Refrigerator | \ | \ |
| Note: 1,"●" indicates that there is this configuration, "o" means optional, "\" means that there is no such configuration; 2, The above parameter configuration is for reference only, the specific information is subject to the actual vehicle; |
||
